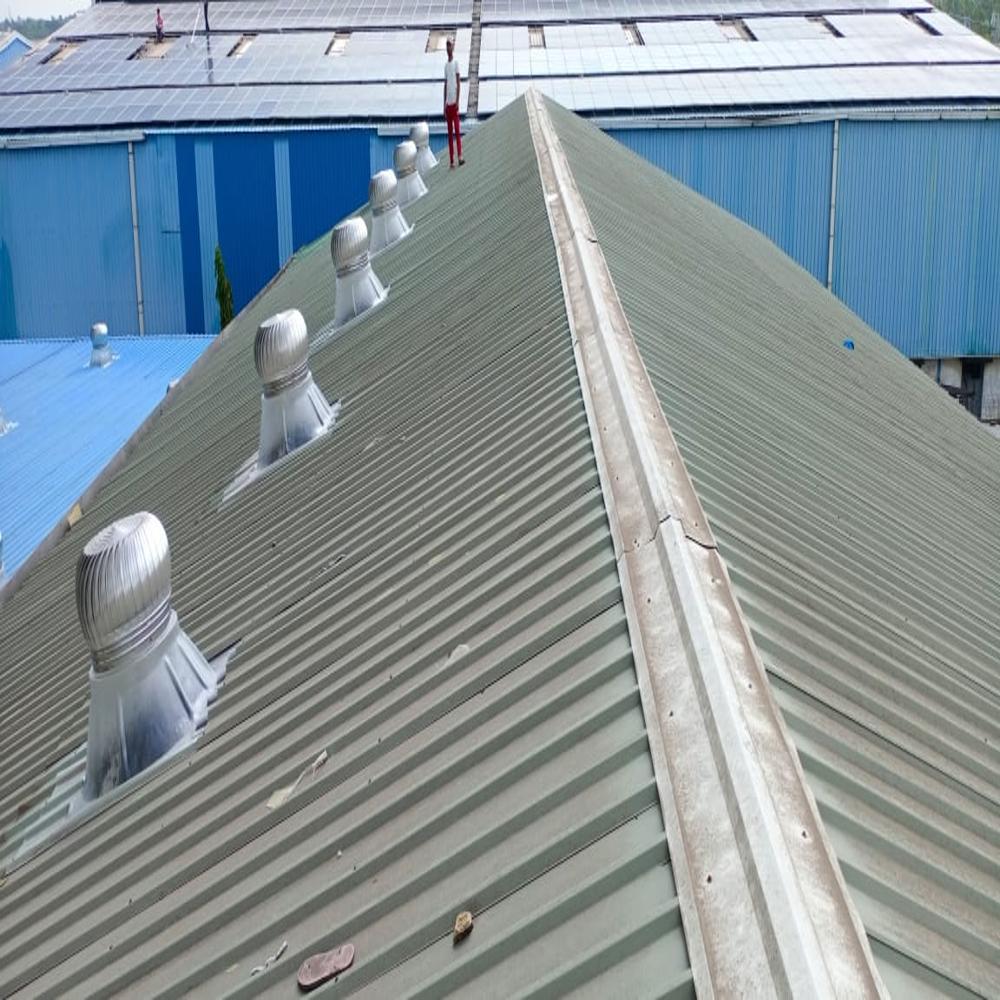

Turbo Air Ventilator

Product Description

Efficiently working Turbo Air Ventilator is the part of our product range. This Turbo Air Ventilator is fabricated under the strict monitoring of our diligent and skilled professionals. Also, we offer these Turbo Air Ventilator at most reasonable prices.

Specifications:

1. Give efficient performance in extreme temperatures & high wind conditions

2. Vanes are made of bright Aluminum /SS material

3. Double curved vanes are specially designed for, maximum weather durability and maximum wind driven efficiency

4. Rain spill deflection

5. Aerodynamic vanes are strong by structure & light in weight

6. Maximum energy utilization & performance of exhaust suction

7. Vanes prevents water entering the turbine by means of under groves

8. Groves are provided for water spill deflection

9. Does not require power or electricity



   Technical Specifications:



   MOC of Vanes	Industrial Grade Aluminum - 8011
   MOC of Top Plate	SS 304
   MOC of Bottom Ring	SS 304
   weight of ventilator	6 Kg.
   Height of ventilator	410mm ± 5mm
   Center Width of Ventilator	735mm ± 5mm
   Dia of Top Plate	500mm ± 5mm
   Dia of Bottom	600mm ± 5mm
   Nos of Vanes	42 Nos. Rolled formed
   Thickness of Vanes	0.45mm
   Bearing Type	SKF - 6001 ZZ Permanently Lubricated & Sealed
   Rivets	Aluminum Alloy with Washer
   FRP Sheet	2mm Thickness X 1.8m X 1m
   Mat	450GSM
   Dome Height	18 Inch
